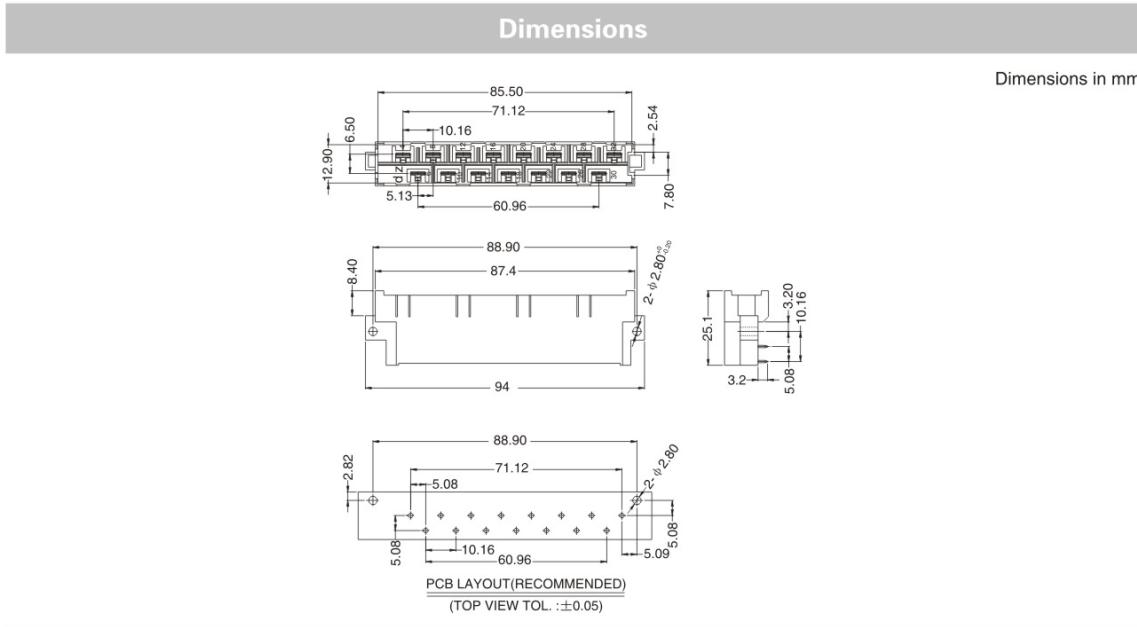

    DIN41612歐式插座 大電流15P公座 H15型

    • Type H15 Male

    • SPECIFICATION

      MATERIAL

      Housing:PBT+30%G.F UL94V-O  Color:Champagne

      Contacts:Brass

      CONTACT PLATING

      Gold Plated on Contact Area,Tin Plated On Solder Tail,Ni Under Plated All Over.


      ELECTRICAL

      Current rating: 15 Amps .

      Contact resistance: 30 mΩ initial

      Insulation resistance: 1000 MΩ min @ 500 VDC

      Dielectric withstanding voltage: 3100 VAC / minute

      Operating temperature: -55°C TO +105°C
